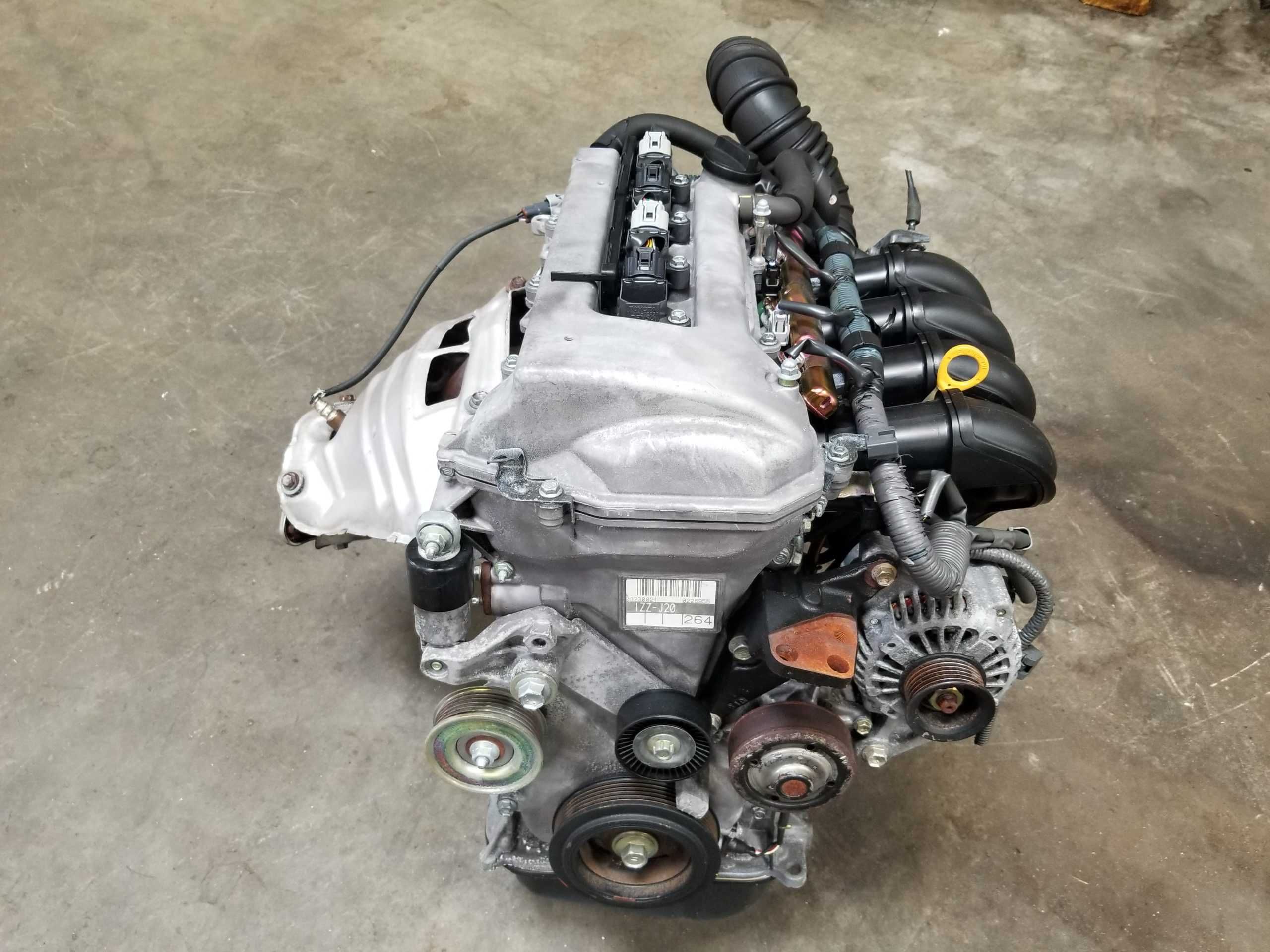

The Toyota 1.8 VVTI 1ZZ-FE engine is known for oil consumption issues, which are often attributed to its design and materials. Here are some key reasons:

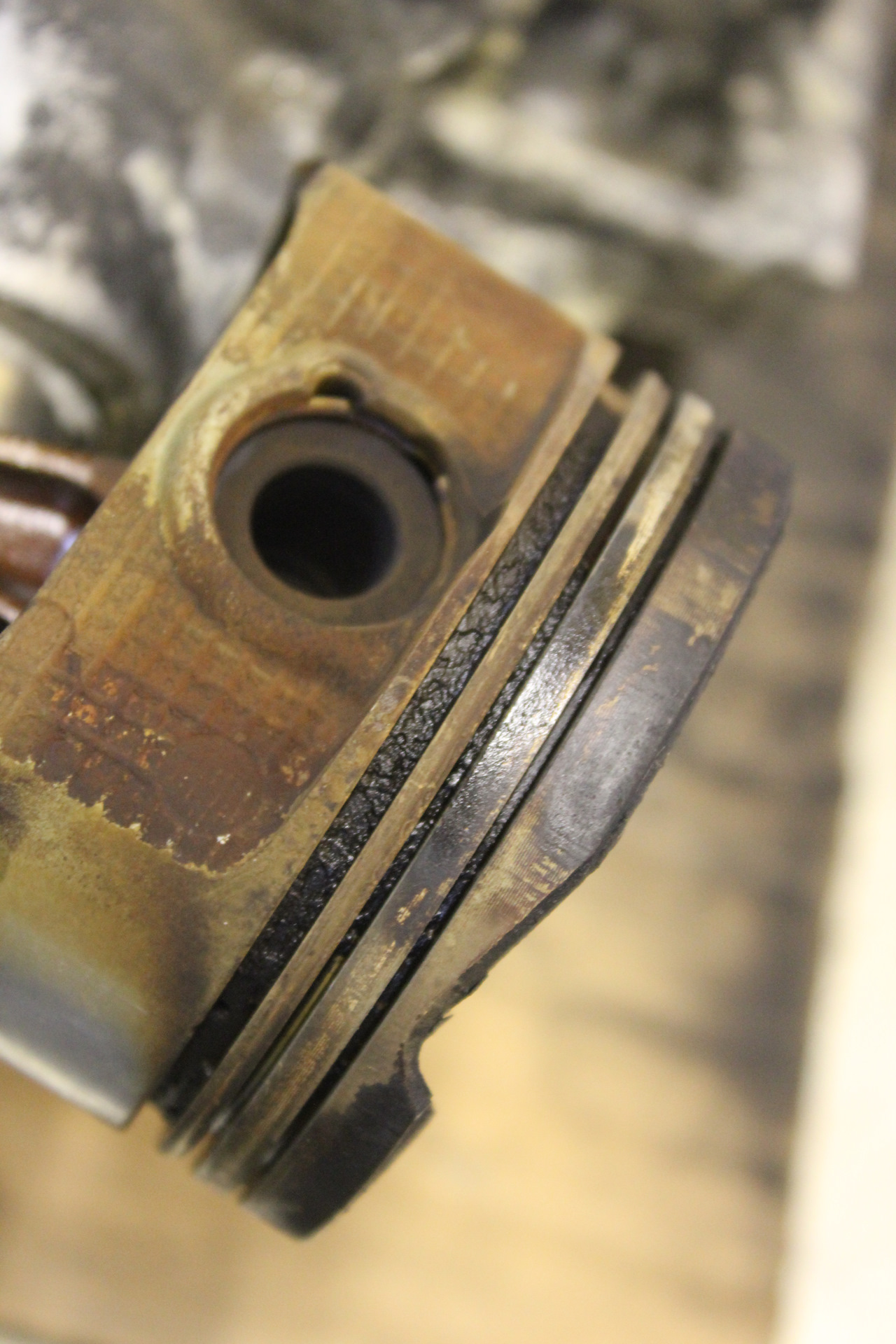

Piston Ring Design: The engine’s piston rings can sometimes fail to maintain a proper seal, leading to oil slipping into the combustion chamber and burning off.
Thin Cylinder Walls: The 1ZZ-FE uses a die-cast aluminum block with thin cylinder liners. Over time, these can wear out or distort, exacerbating oil consumption.
PCV System Issues: A clogged or malfunctioning Positive Crankcase Ventilation (PCV) system can increase internal pressure, pushing oil past seals and into the combustion chamber.
High Operating Temperatures: The engine’s design can lead to higher operating temperatures, which may degrade oil faster and contribute to consumption.
Valve Stem Seals: Worn valve stem seals can allow oil to leak into the combustion chamber, especially during startup.
These issues were more common in earlier models of the 1ZZ-FE engine. Toyota made some improvements in later versions, but the reputation for oil consumption problems persisted. Regular maintenance, using high-quality oil, and addressing issues like the PCV system early can help mitigate these problems.
Toyota made several improvements to address the oil consumption issues in the 1ZZ-FE engine:

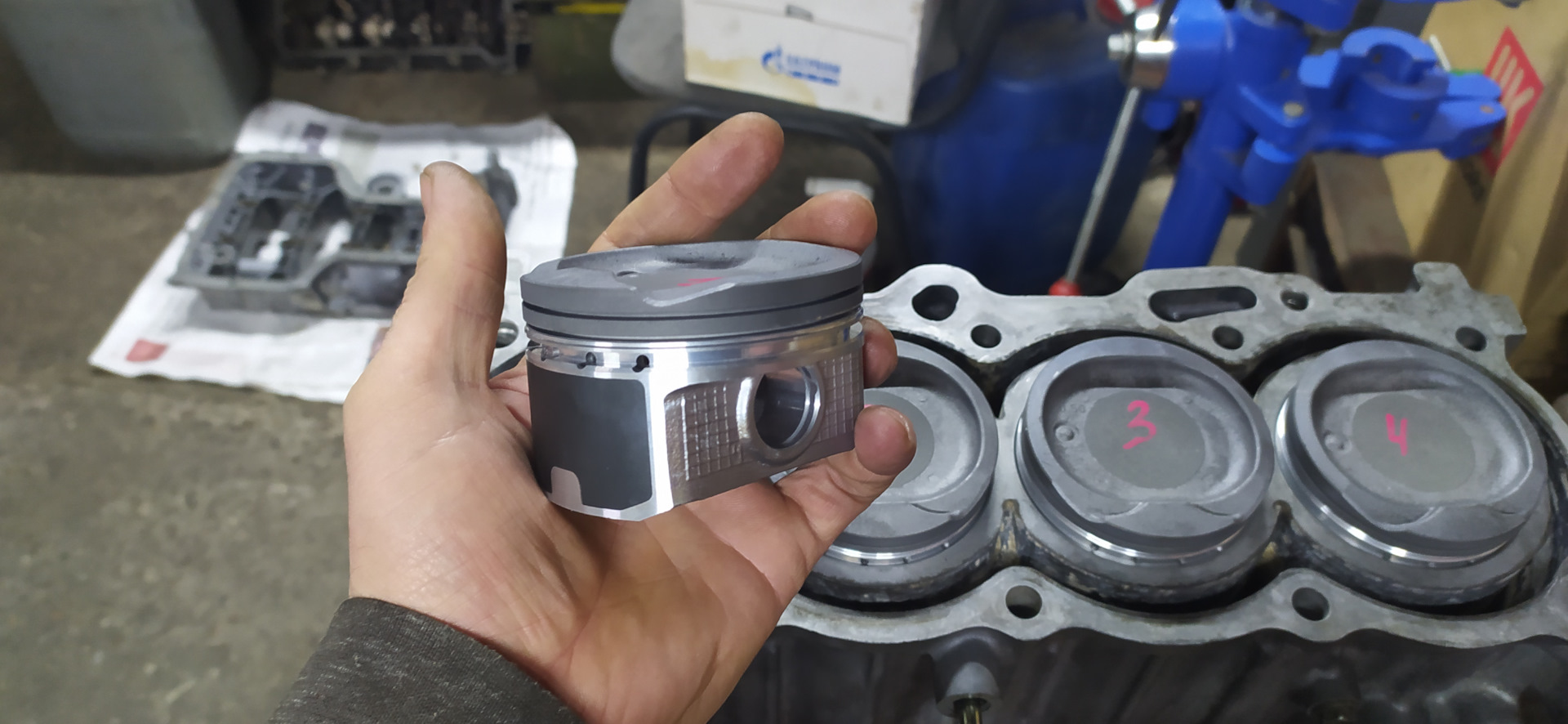

Piston Design Changes: Toyota modified the pistons by adding extra oil return holes behind the oil control rings. This helped prevent clogging and allowed oil to flow back into the crankcase more effectively.
Improved Piston Rings: The piston rings were redesigned to provide a better seal and reduce the likelihood of oil slipping into the combustion chamber.
Material Upgrades: Toyota used improved materials for the piston rings and cylinder liners to enhance durability and reduce wear over time.
Updated PCV System: The Positive Crankcase Ventilation (PCV) system was refined to better manage internal pressure and minimize oil leakage.
These changes were implemented in later versions of the 1ZZ-FE engine, particularly from around 2004-2005 onwards. If you’re dealing with an older model, regular maintenance and using high-quality oil can help mitigate the issue.
